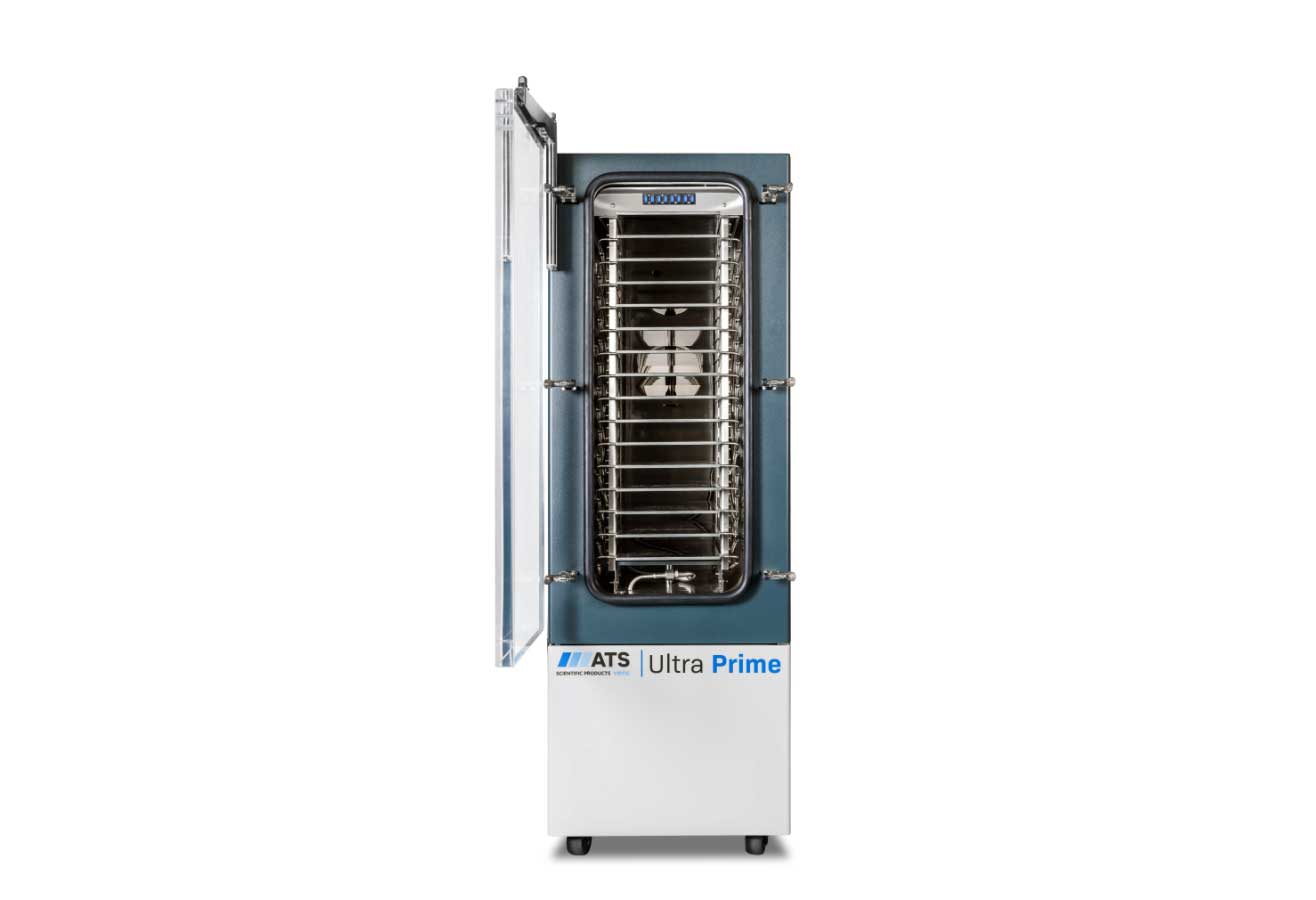

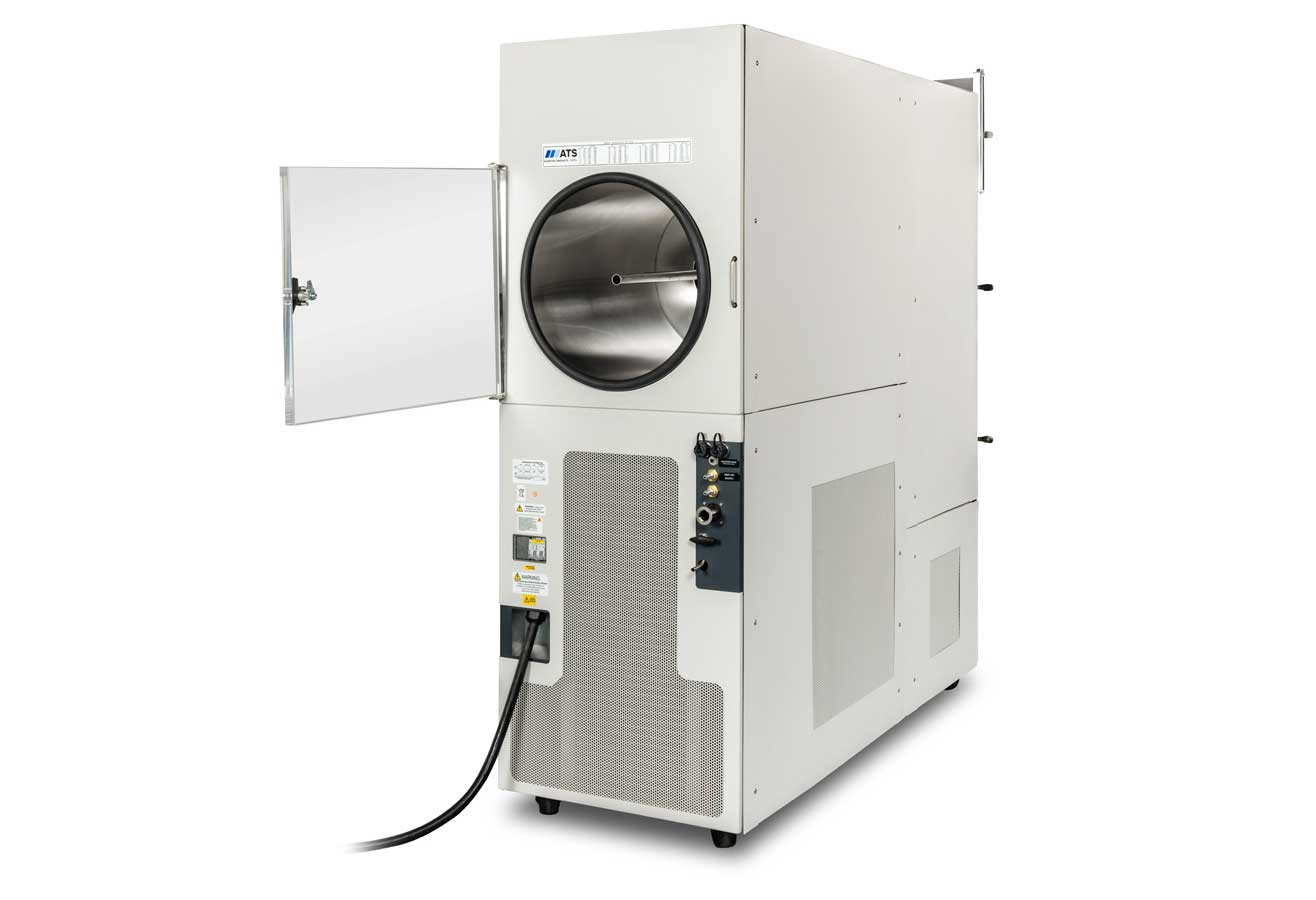

VirTis Ultra Prime 50L R&D and Small-Batch Production Freeze Dryer

Broşürler
Daha Fazla Bilgi

Özellikler

Lowest shelf temperature (50 Hz / 60 Hz)
≤ -67°C / -70°C
Shelf temperature control range*
-55 to 65°C
Shelf Temperature Control Range Tolerance
+/- 0.5 °C
Shelf pull-down from 20°C to -40°C†
≤ 40 minutes
Lowest condenser temperature (50 Hz / 60 Hz)
≤ -82°C / -85°C
Maximum condenser capacity
≥ 50 L
Condenser surface area
0.93 m² (10 ft²)
Condenser pull-down from 20°C to -45°C
≤ 20 minutes
Ice condensing capacity in 24 hours‡
≥ 20 L
Vacuum time to 100 mTorr§
≤ 45 minutes
Vacuum Level Control
+/- 0.007 mbar (+/- 5 mTorr)
Vacuum Level Control Range
0.067 – 0.67 mbar (50 – 500 mTorr)
Volume-based leak rate§
≤ 0.0042 mbar∙L/sec (≤ 3.2 mTorr∙L/sec)
Lowest system vacuum§
≤ 0.2 mbar (≤ 15 mTorr)
Temperature uniformity
± 1.0°C
Noise Level
75 dBA
